Name: 500W LED Strip Depaneling Machine With Anti Dwelling Structure
Brand: YUSHUNLI
Price: 1000 USD

Brand Name : YUSHUNLI

Model Number : PCB separator machine

Certification : CE

Place of Origin : Dongguan,China

MOQ : 1set

Price : USD1000~10000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200Sets/Month

Delivery Time : 7-10 work days

Packaging Details : plywooden case

Operation mode : Automatic operation

Board length : 300~1200 mm（can sustom made）

Plate accuracy : 0.1mm

Working pressure : 0.6~0.8Mpa

Weight : 200kg

Size : 1850*560*1450mm

Contact Now

Automatic Operation 200KG LED 1850*560*1450mm Light Strip Depaneling Machine

Machine specifications:

Dimensions:L1300W900H1900
Cutting width : Max 300mm Power: 500W
Blade size: 356386mm (Straight knife)
Working pressure 0.5~0.8Mpa Weight: 450kg
Program programming, automatic feeding and cutting machine.

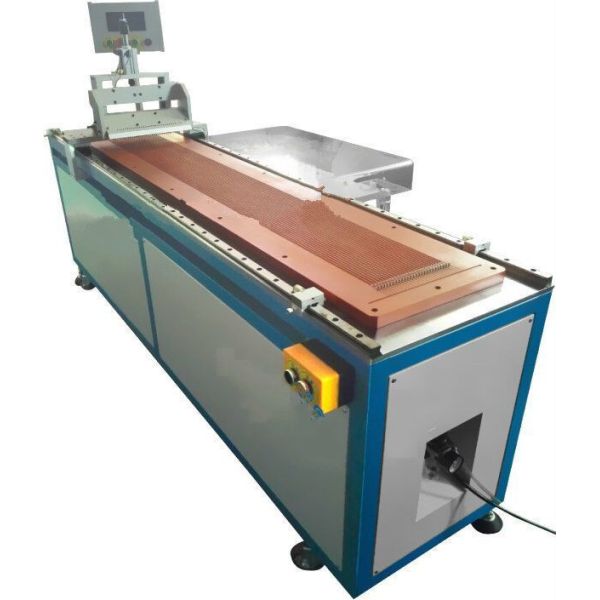

500W LED Strip Depaneling Machine With Anti Dwelling Structure

Features:

Cutting boards Fiberglass board, FR4 board, aluminu m substrate, copper substrate, etc.
Positioning According to the V cut line positioning, the screen displays the feed data.
1. For the pcb cutting equipment developed by COB light source board, the microcomputer is used to control the automatic feeding board.
2. The efficiency is 5~6 times faster than the traditional board machine.
3. When the cutting is performed, the micro stress of the components is about 200, to avoid tin cracking and prevent damage of precision parts.
4, gas hybrid design, double straight knife depaneling, especially suitable for dividing precision PCB board
5. Scythe work, suitable for various thickness MCPCB, the cutting stroke is below 2mm.
6, anti-dwelling structure design, there is no operational safety concerns.

500W LED Strip Depaneling Machine With Anti Dwelling Structure
