Pneumatic Pulse Heat Soldering /Hot Bar Welding Machine for FFC to FCB
Features:
1. FFC TO PCB programmable pressure switch for precise force control.
2. Closed Loop PID temperature control with visible LCD display.
3. Each heating cycle is triggered by a real time pressure sensor.
4. Silicon rubber can be fitted in bonding Heat Seal Connectors between FFC and PCB.
5. Parts registration is adjusted by micrometer and secured by vacuum lock. Optional CCD system for fine pitch component.

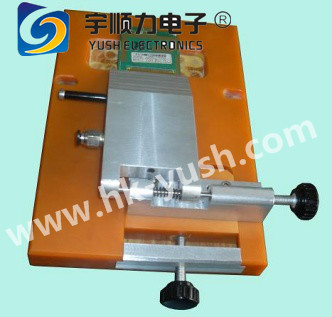

6. Standard workpiece holder is mounted on a linear guideway and designed to allow for easy changeover and repeatable operation.
7. Floating thermode ensures consistent pressure and heat transfer between thermode head and the parts to be joined.
Specifications:
| Model | YSPP-1A |
| Air pressing (MPa) | 0.45~0.7 |
| Working area (mm) | 200x260 |
| Size (MM) | 500*750*640 |
| Weight (Kg) | 90 |
| Guarantee | 1 Year |
| Delivery | 1 Day |
| Min. Order | 1 Set |
| Ability | 1000 Sets |
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. Electronic component won't short circuit
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
2. Mold make of SKD-11 Steel,Blade is SKD-9(From Japan),Rigorous Job
Our Best Service:
1. Engineer overseas tranning for customers.
2. Promise day technical support services.
3. Limit the handling of complaints, half an hour back to customers.
4. Reliable machine maker,we get Experts--15,each one got over six years experience,equipment quality will be satisfying.
